| 원래 장소: | 광동, 중국 |
|---|---|
| 브랜드 이름: | Jinyu Intelligent Machinery |
| 인증: | SGS,CE |
| 모델 번호: | JY-250XD |
| 최소 주문 수량: | 1 세트 |
| 가격: | $8000-9000 |
| 포장 세부 사항: | 플레스틱 필름 및 나무로 되는 상자 수출하기 |
| 배달 시간: | 15-20 작업 일 |
| 공급 능력: | 달 당 100 세트 |
| 용법: | 일회용 스픈 | 재료: | 304 스테인리스 및 탄소 강철 |
|---|---|---|---|
| 구조: | 페이퍼 유형 아래로 | 장점: | 쉬운 가동 |
| 특징: | 빠른 패킹 | 상태: | 새로운 만들기 |
| 보증: | 12개월 | 애플리케이션: | 영화 |
| 하이 라이트: | 2.4KW Flow Packing Equipment,Disposable Spoon Flow Packing Equipment,SUS304 Tableware Packing Machine |
||

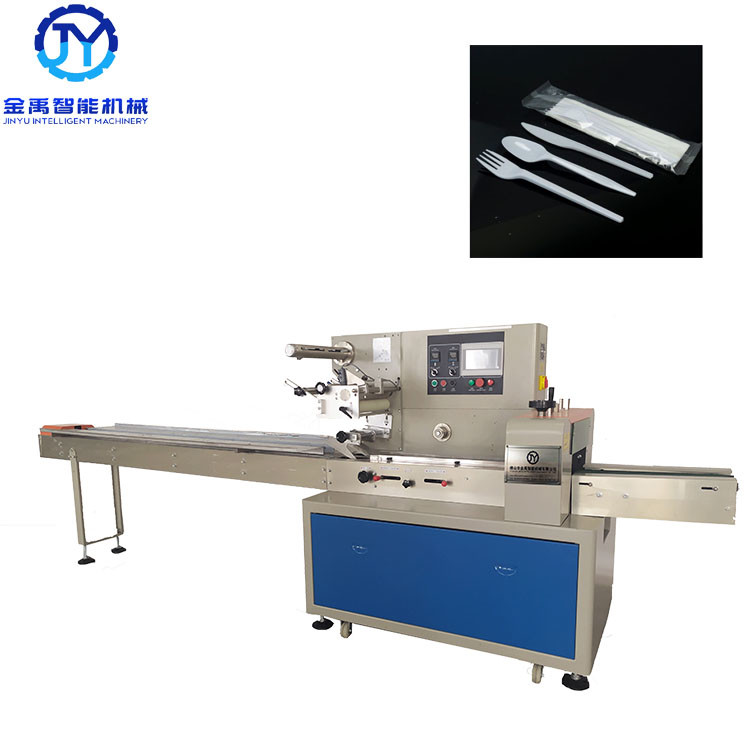

Disposable Spoon Four Piece Tableware Set Flow Packing Machine
Parameter:
| Model | 250E/S | 250B/D | 320B/D | 350B/D |
| Film width | Max.180mm | Max.250mm | Max.320mm | Max.350mm |
| Bag length | 50-115mm or 45-90mm |
65-190mm/90-280mm 90-220mm/120-330mm |
65-190mm/90-280mm 90-220mm/120-330mm |
65-190mm /90-280mm 90-220mm/120-330mm |
| Bag width | 30-80mm | 30-110mm | 50-160mm | 50-160mm |
| Product’s height | Max.35mm | Max.45mm | Max.55mm | Max.60mm |
| Packing speed | 60-330bags/min | 40-230bags/min | 40-230bags/min | 40-180bags/min |
| Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.6KW |
| Machine dimension | 3770x670x1450 | 3770x670x1450 | 3770x720x1450 | 4020x770x1450 |
| Machine weight | 500kg | 500kg | 550kg | 580kg |
1.Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.
2:human-machine operation, convenient and quick parameter setting.
3:Self diagnosis failure function, clear failure display.
4:High sensitivity optical electric color mark tracking &digital input cut position which makes
the sealing&cutting more accurate.
5: Separate PID control to temperature, suitable for various packing materials.
6:Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7:Simple driving system, reliable working, convenient maintenance.
8: All the controls are achieved by software, convenient for function adjusting and upgrading.
Samples packing :
More details please contact : 0086133-3643-2641 Ms. Lily
FREE for service we offer:
1. Offer sample packing service
2. Offer related product packing video
3. Offer customized professional packing solution
4. Offer service for irregular visits and equipment maintenance
5. Offer pre-sales and after-sales service
6. Offer one-year warranty, lifetime service
7. Offer and help service of booking roll film
8. Offer installment video, teaching video and maintain video
